Bonnet strut
Author Message
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2712
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
Reply with quote
Has anybody investigated putting a hydraulic strut on the bonnet rather than the existing mechanism?

_________________
'72 PR60 Sport


Fri Jul 03, 2020 2:20 am
Profile WWW
User avatar

Joined: Tue Oct 28, 2008 12:17 pm
Posts: 2519
Location: Rye Park, N.S.W.
Car(s): Doris, AuntyMary, Shrek, Jimmy; GT, Wasp, Flo & Sed unrestos; 65 Elf; 82 Rodeo, 60 TX550, 84 Sigma.â 2 Moderns
Reply with quote
No Glenn, that's something I've never thought about. Possibly because I haven't ever seen one fail, and every car we've had with gas struts, one or more has failed. And the Bellett is the oldest.

I have however thought about grafting a Bellett body onto a WRX subframe to get all wheel drive and turbo performance! Then I thought, yeah....., nah.
:D Matt.

_________________
Life is far too short not to fill it with what you love. - Jackie French.[/size]


Sat Jul 04, 2020 1:08 pm
Profile
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2712
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
Reply with quote
Farmer wrote:
No Glenn, that's something I've never thought about. Possibly because I haven't ever seen one fail, and every car we've had with gas struts, one or more has failed. And the Bellett is the oldest.

I have however thought about grafting a Bellett body onto a WRX subframe to get all wheel drive and turbo performance! Then I thought, yeah....., nah.
:D Matt.


Great minds think alike...... I thought many times about grafting similar to that idea !

Yes the Bellett 'strut' is long lasting. But more thinking about various mods one could do if doing anew project. Not that I am !

_________________
'72 PR60 Sport


Sun Jul 05, 2020 3:36 am
Profile WWW
User avatar

Joined: Fri Nov 07, 2008 9:05 am
Posts: 595
Location: Western Victoria
Car(s): Bellett GT, Bellett Sedan, Prince Skyline GT, Porsche tractor, Lanz Bulldog, 996 Carrera 4,Prince Miler,
Reply with quote
Or a Wasp body onto a 4WD LUV chassis...…...

_________________
Around here the Laws of Physics and Reality are strictly enforced !


Sun Jul 05, 2020 5:46 am
Profile
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2712
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
Reply with quote
KJB wrote:
Or a Wasp body onto a 4WD LUV chassis...…...


Not Isuzu but period..... '69 Corolla with V8. Note its been widened end lengthened. Lost a lot of the cohesive look though.
https://www.motortrend.com/news/1969-toyota-corolla-lexus-is-f-v-8-first-test-review/

_________________
'72 PR60 Sport


Sun Jul 05, 2020 7:01 am
Profile WWW

Joined: Tue Sep 16, 2008 11:54 am
Posts: 2521
Reply with quote
KJB wrote:
Or a Wasp body onto a 4WD LUV chassis...…...

Or a Wasp with a tunnel rammed V8 and a chopped roof.....


Sun Jul 05, 2020 7:05 am
Profile
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2712
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
Reply with quote
PR91 wrote:
KJB wrote:
Or a Wasp body onto a 4WD LUV chassis...…...

Or a Wasp with a tunnel rammed V8 and a chopped roof.....


a wasp with a sting

_________________
'72 PR60 Sport


Mon Jul 06, 2020 12:13 am
Profile WWW
User avatar

Joined: Fri Apr 10, 2009 11:29 pm
Posts: 1524
Location: Kallangur, Brisbane QLD
Car(s): 3x1965 PR20(Donkey, Jenny n Bundy) 1 1969 PR20(Percy) 2 1968 PR20(Eugine n GT Donor) 1 1968 PR91 GT, 1 1965 Wasp
Reply with quote
Or a Wasp with a tunnel rammed V8, chopped roof on a 6x4 Luv chassis with a tilt slide tray :evil:

_________________
1xB+1xE+2xL+1xE+2xT=BELLETT
RUST isn't a crime
www.gartdesign.com.au


Thu Jul 09, 2020 8:12 am
Profile YIM WWW
User avatar

Joined: Sun Oct 05, 2008 10:21 pm
Posts: 524
Location: Darwin NT
Car(s): Isuzu Bellett, VG Commodore Ute, Custom Chopper
Reply with quote
Yes - I have.
I have been collecting struts of all lengths and strengths over the last few months and am going to try and make something up to retro fit some.

It is a work in progress at the moment.


Fri Jul 10, 2020 9:42 pm
Profile WWW
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2712
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
Reply with quote
redback wrote:
Yes - I have.
I have been collecting struts of all lengths and strengths over the last few months and am going to try and make something up to retro fit some.

It is a work in progress at the moment.


Will be very interested in what you use. Starting from scratch its hard to know what strut to use.

_________________
'72 PR60 Sport


Sat Jul 11, 2020 4:42 am
Profile WWW
User avatar

Joined: Sun Oct 05, 2008 10:21 pm
Posts: 524
Location: Darwin NT
Car(s): Isuzu Bellett, VG Commodore Ute, Custom Chopper
Reply with quote

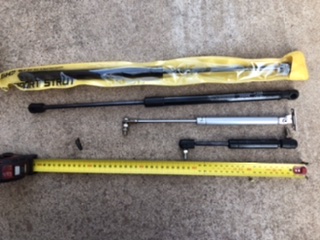

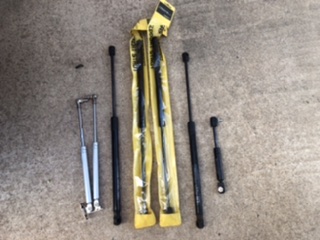

This is what I have so far. I would love to do the boot too.


Attachments:
53F9D2D7-B841-4DD6-A11B-01B602A2BA1F.jpeg [ 34.6 KiB | Viewed 2140 times ]
4712BB54-E46D-4F2E-956F-21D39E28C5EF.jpeg [ 32.82 KiB | Viewed 2140 times ]
Sat Jul 11, 2020 7:31 am
Profile WWW
User avatar

Joined: Sun Oct 05, 2008 10:21 pm
Posts: 524
Location: Darwin NT
Car(s): Isuzu Bellett, VG Commodore Ute, Custom Chopper
Reply with quote

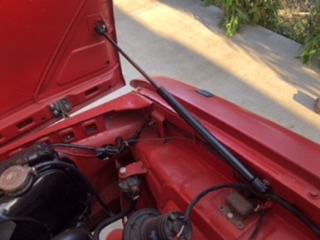

Soooooo - I have been thinking about doing this for YEARS..........15 minutes later:


Attachments:
8B4CCC2F-2CEB-4A41-89F2-1B37311D8D00.jpeg [ 28.05 KiB | Viewed 2139 times ]
Sat Jul 11, 2020 8:23 am
Profile WWW
User avatar

Joined: Sun Oct 05, 2008 10:21 pm
Posts: 524
Location: Darwin NT
Car(s): Isuzu Bellett, VG Commodore Ute, Custom Chopper
Reply with quote

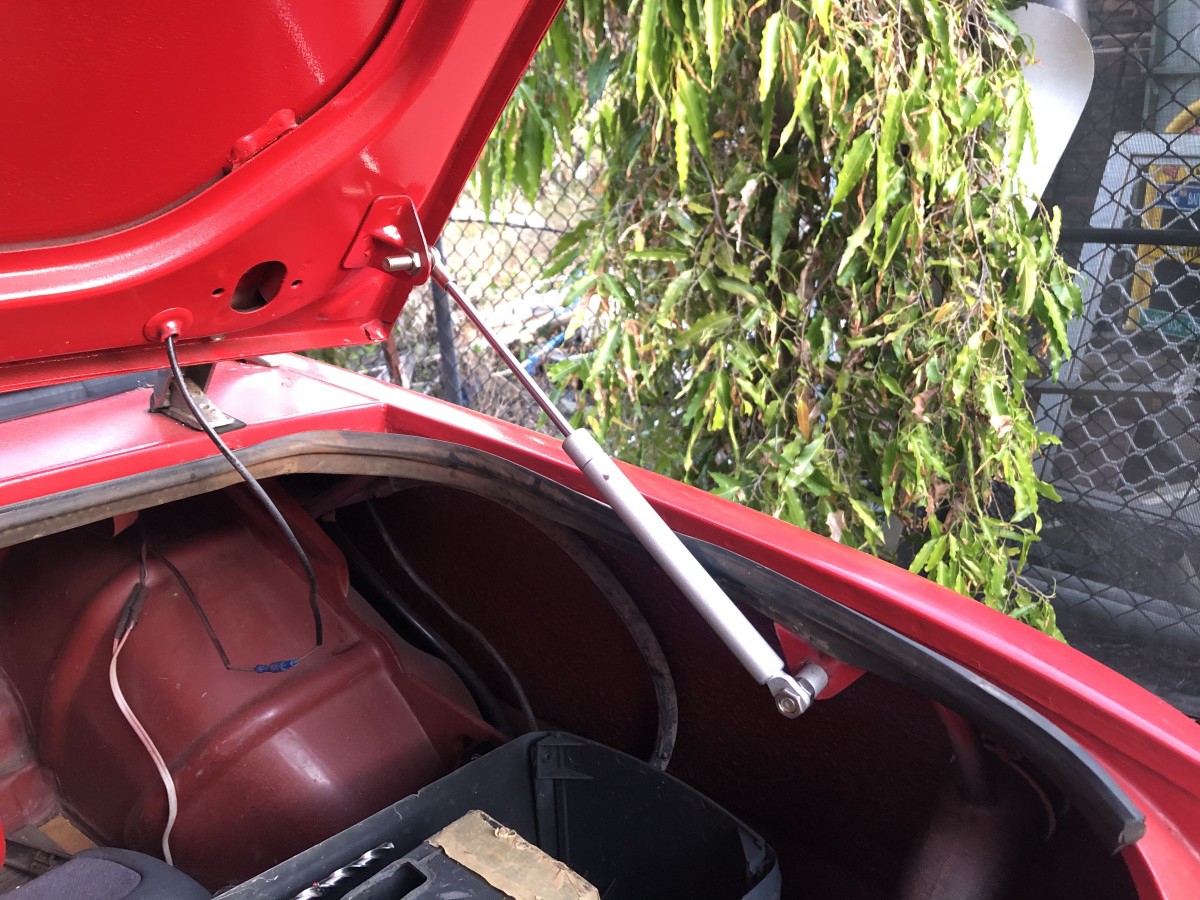

And I did the boot


Attachments:
AAB38F0D-DE97-41D1-8375-AE84A8B18641.jpeg [ 3.38 MiB | Viewed 2133 times ]
Sat Jul 11, 2020 9:34 am
Profile WWW
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2712
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
Reply with quote
redback wrote:
Soooooo - I have been thinking about doing this for YEARS..........15 minutes later:


Fantastic, glad i spurred you on !

Do you have any details on the struts use? What are off, length etc. New or second hand.

_________________
'72 PR60 Sport


Sun Jul 12, 2020 2:22 am
Profile WWW
User avatar

Joined: Sun Oct 05, 2008 10:21 pm
Posts: 524
Location: Darwin NT
Car(s): Isuzu Bellett, VG Commodore Ute, Custom Chopper
Reply with quote
Hey Glen,

Yes thank you - you certainly did.

Ok here are the details.

FRONT BONNET STRUT:

Calibre CSS311 - new from Supercrap Auto.

It is 500mm from hole to hole extended and 311mm closed.

STEP ONE: You have to cut and grind off the stud on the bonnet side of the bracket and drill it out to 8mm to pass the ball stud through. Prime and paint the bare metal.
Step Two: Measure 318-320mm from the original lower inner guard mount and drill a hole 8mm. Prime and paint the bare metal.
Step Three: Insert the ball end studs in the bonnet and the inner guard and retain with nylock nuts - you MUST strengthen the inner guard with a plate (I used a large washer both inside and in the wheel well area) or the inner guard will flex too much from the force of the closed gas strut.
Step Four: Install strut and test a couple of times and make sure it is not binding.

In my opinion the area on the bonnet bracket is a bit weak and may be prone to kinking as you close it - so I "help" the bonnet closed by pushing near this bracket as well as from the top corner of the bonnet.

NOW FOR THE BOOT.
I used and gas strut from a old desk that had a hydraulic keyboard height adjuster. They are 290mm from hole to hole in the open position (which I think needs to be longer) and 180mm hole to hole in the closed position. With a lifting weight of 12kg. This just bolts to the original brackets with a 12mm spacer on the bottom to align the strut properly.

I hope this all helps.

Let me know if you have a crack to install some yourself and post your photos please. :)

Good luck and enjoy doing this great upgrade to your Bellett.


Attachments:
01.jpg [ 1.11 MiB | Viewed 2111 times ]
02.jpg [ 1.47 MiB | Viewed 2111 times ]
03.jpg [ 1.16 MiB | Viewed 2111 times ]
04.jpg [ 3.46 MiB | Viewed 2111 times ]
05.jpg [ 3.79 MiB | Viewed 2111 times ]
05B.jpg [ 1.75 MiB | Viewed 2111 times ]
06.jpg [ 1.83 MiB | Viewed 2111 times ]
Sun Jul 12, 2020 3:22 am
Profile WWW
User avatar

Joined: Tue Oct 28, 2008 12:17 pm
Posts: 2519
Location: Rye Park, N.S.W.
Car(s): Doris, AuntyMary, Shrek, Jimmy; GT, Wasp, Flo & Sed unrestos; 65 Elf; 82 Rodeo, 60 TX550, 84 Sigma.â 2 Moderns
Reply with quote
No doubt about ya Neil! Modernization!
I admit that I've had to educate people how the boot prop works. Lift, then lower doesn't occur to some people. I've even bought a car that had the bootlid bent where some poor knucklehead had forced it down so hard!

But I'm wierd, I like the click-clack of the mechanism and sproingy bonnet spring sound. Must just be impressed from when I was 8.
:D Matt.

_________________
Life is far too short not to fill it with what you love. - Jackie French.[/size]


Sat Jul 18, 2020 11:25 pm
Profile
User avatar

Joined: Tue Jun 18, 2013 5:09 am
Posts: 417
Location: Launceston Tasmania
Car(s): PR91 1967 GT, PR20 1966 1/2 with GT Goodies, Bellett PR20 1968 Orange with Turbo G161 OHV
Reply with quote
I’m with you Matt
Click clack never go back
J

_________________

To increase the fun, add a hair dryer


Sun Jul 19, 2020 4:05 am
Profile
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2712
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
Reply with quote
Many thanks Neil for the detailed info. Next time i am out i will checkout supercrap...

and report back. Right now my Sport is out being re-trimmed inside so can't do much.

glenn

_________________
'72 PR60 Sport


Mon Jul 20, 2020 3:38 am
