Hello,
I am chasing a set of disk brakes to slot on to the front of my Bellett please.
Has anyone got a set that they have stashed away and not going to use in the future??
Prices and pics can be emailed. PM me for email address please.
Cheers,
Neil
Darwin
Wanted - Disk Brakes
-
IZU069
- Posts: 43
- Joined: Sat Nov 29, 2008 9:09 am
- Car(s): BellettGT, Wasp, Florian, Piazza, Jackaroo
Re: Wanted - Disk Brakes
I'd recommend the 85-92 Magna solution onto drum hubs.
Otherwise, I have GT setups with new pads (and a set of 4,000km discs); PM me with an $offer if interested.
Otherwise, I have GT setups with new pads (and a set of 4,000km discs); PM me with an $offer if interested.
-
bellett65
- Posts: 156
- Joined: Sun Oct 12, 2008 7:14 am
- Car(s): Isuzu DMax LSU, Isuzu MUX, 1979 117 Coupe.
- Location: Cranbourne Victoria
Re: Wanted - Disk Brakes

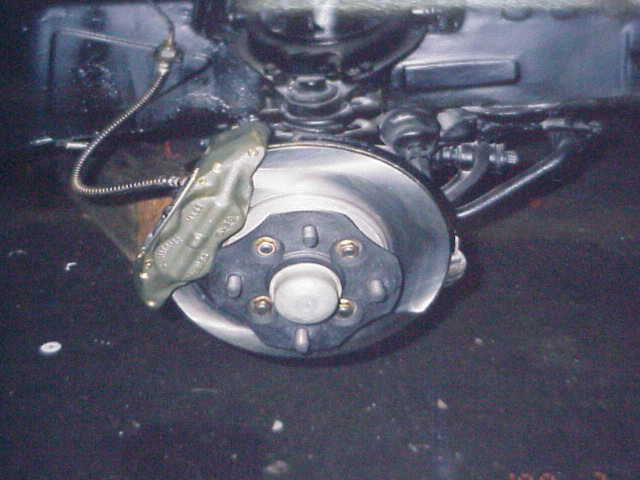

TP Magna quite and easy fit over standard drum hubs. Wheels wil have to go to at least 14"
- Attachments
-
- B-03.jpg (39.65 KiB) Viewed 13990 times
Since the day of my birth, my death began its walk. It is walking towards me, without hurrying
-
2ldohc
- Posts: 601
- Joined: Wed Sep 10, 2008 1:22 pm
- Car(s): 1968 Isuzu Bellett Deluxe (Polynesian Blue), 1974 Datsun 240z, 1970 Datsun Fairlady SRL311, 1966 Prince Skyline
- Location: Adelaide, Australia
- Contact:
Re: Wanted - Disk Brakes
Is there any difference from the eariler TM/TN to the TP or does it have to be the TP specifically?
ISU069 mentions the years there which cover TM - TP (I think).
What about the back? Is there anyway to get disc's on the back too?
Cheers,
R.
ISU069 mentions the years there which cover TM - TP (I think).
What about the back? Is there anyway to get disc's on the back too?
Cheers,
R.
1966 Prince Skyline GT-B
1968 PR20 Bellett Deluxe (flat lights)
1970 SRL311 Datsun Fairlady
1971 S30 Datsun 240Z - Race car
1972 S30 Datsun 240Z
For more info, articles and pictures visit http://GarageofAwesome.com.au
1968 PR20 Bellett Deluxe (flat lights)
1970 SRL311 Datsun Fairlady
1971 S30 Datsun 240Z - Race car
1972 S30 Datsun 240Z
For more info, articles and pictures visit http://GarageofAwesome.com.au
-
belletbumpkin
- Posts: 4
- Joined: Wed Mar 11, 2009 9:51 am
Re: Wanted - Disk Brakes
Hi,any pics of the calliper bracket?
-
IZU069
- Posts: 43
- Joined: Sat Nov 29, 2008 9:09 am
- Car(s): BellettGT, Wasp, Florian, Piazza, Jackaroo
Re: Wanted - Disk Brakes
The Magna disk 1985-1992 includes the TM, TN, TP & fits OVER the drum hub.
Peter's pic above is not that type of Magna disk.
Peter's pic above is not that type of Magna disk.
-
bellett65
- Posts: 156
- Joined: Sun Oct 12, 2008 7:14 am
- Car(s): Isuzu DMax LSU, Isuzu MUX, 1979 117 Coupe.
- Location: Cranbourne Victoria
Re: Wanted - Disk Brakes

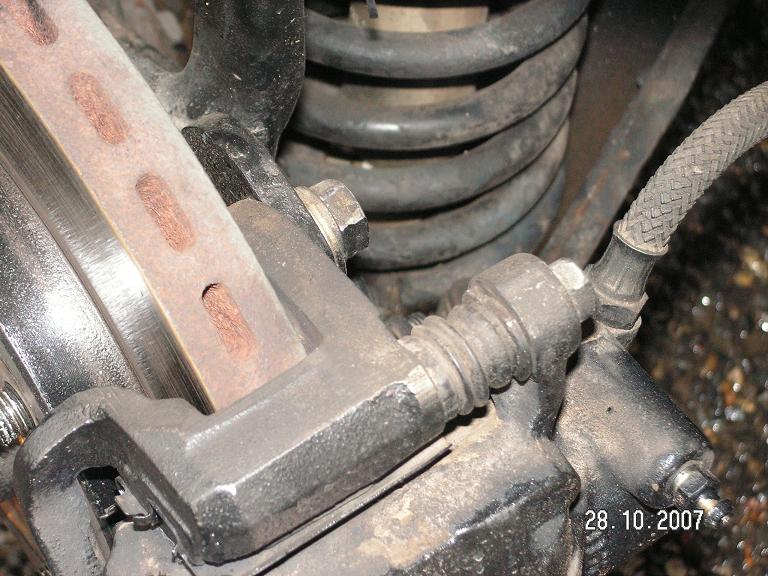

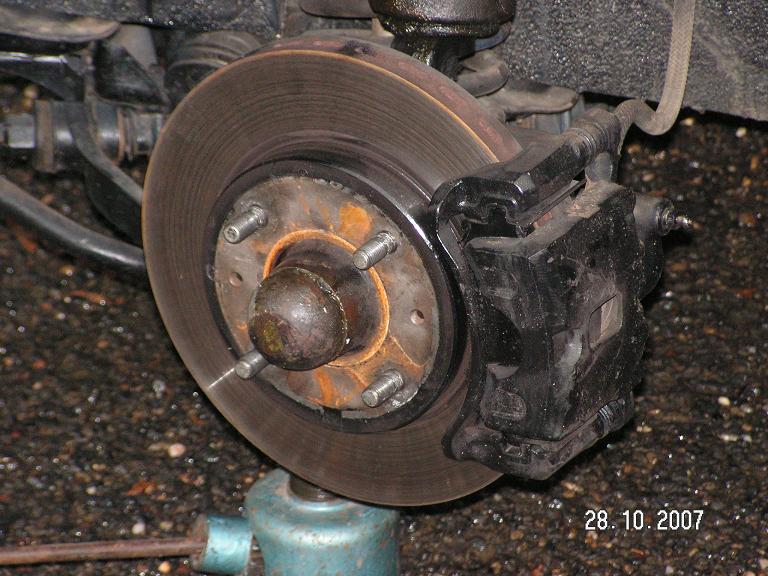

Sorry bout that wrong piccy Here is the right one. A template is available. I would add that as the piccies do not show this system has, what in my considered opinion a major flaw. The stub has 4 mounting holes for the drum brake system. This in my considered opinion is the way that any brake bracket should be mounted. I am in the throws of having a pair made for myself. They will be laser cut and possibly washed down to 9mm thick. I will keep you informed of my progress.
- Attachments
-
- brakes_02.jpg (92.51 KiB) Viewed 13811 times
-
- brakes_01.jpg (89.64 KiB) Viewed 13811 times
Since the day of my birth, my death began its walk. It is walking towards me, without hurrying
